MODEL 97 BRAKE PEDAL

[locknut]

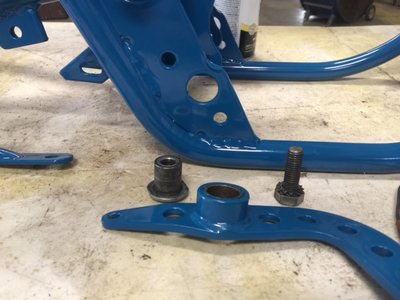

Help !! I'm restoring a Model 97 that came in pieces. I don't see how this brake pedal will fit the frame.

Any ideas ?

[JackM]

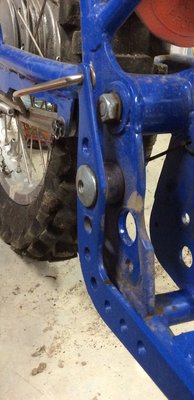

Locknut, the big nut on the left goes through the brake arm and the bolt with star washer goes through the top smaller hole from inside the frame into the nut.

[socalhodaka]

[Hydraulic Jack]

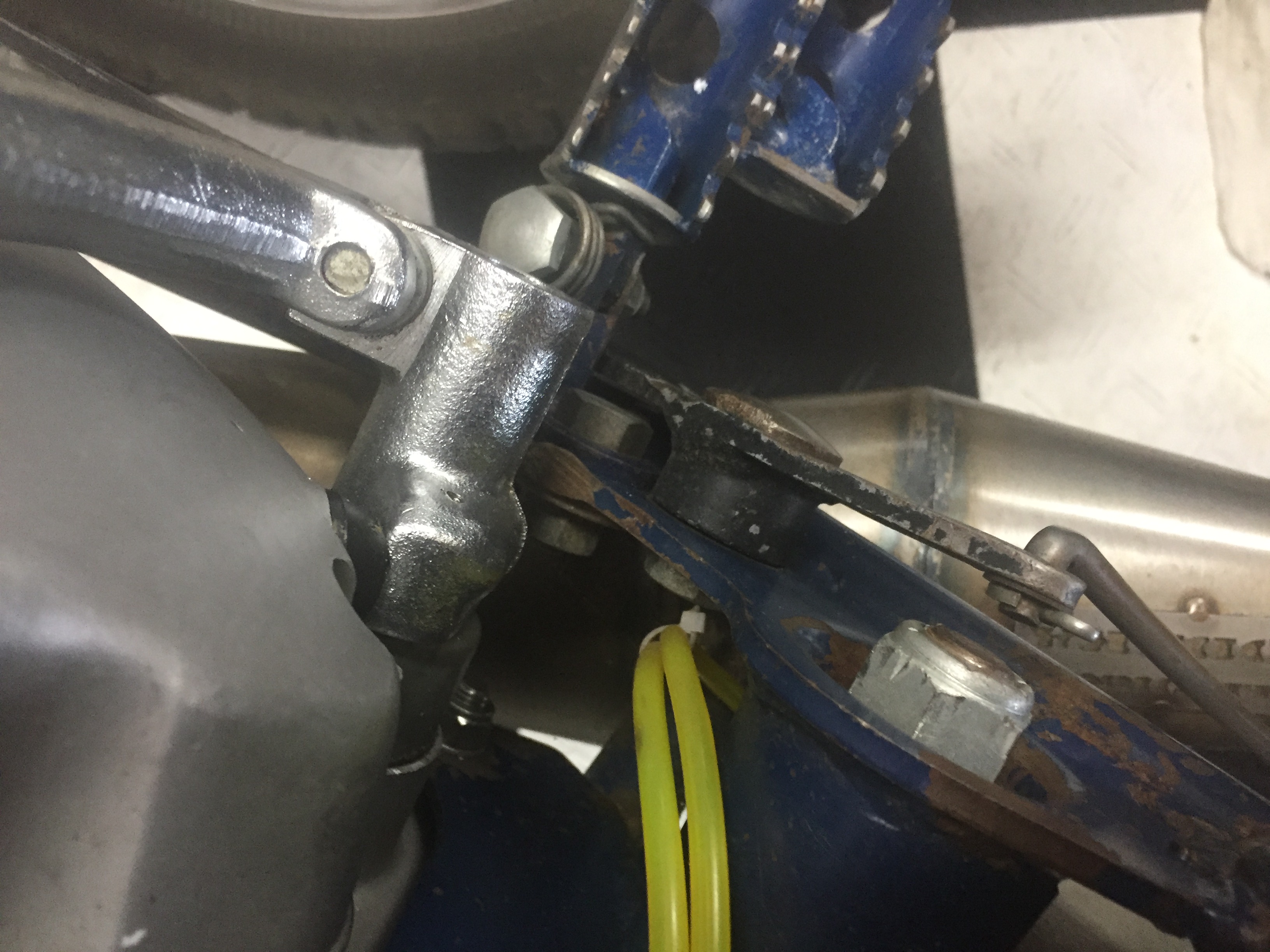

Here's another view of the same thing:

[locknut]

THANKS,

Not so obvious in the explode views.

[Steve Arnold]

Hey Locknut,
Once you get that girl running, you will find it is a real sweet machine. Enjoy.

Steve
